detail product

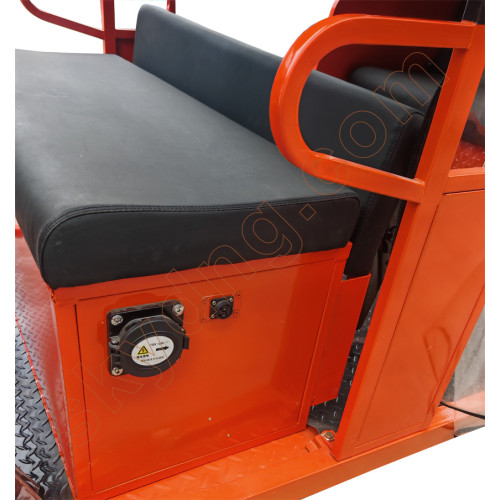

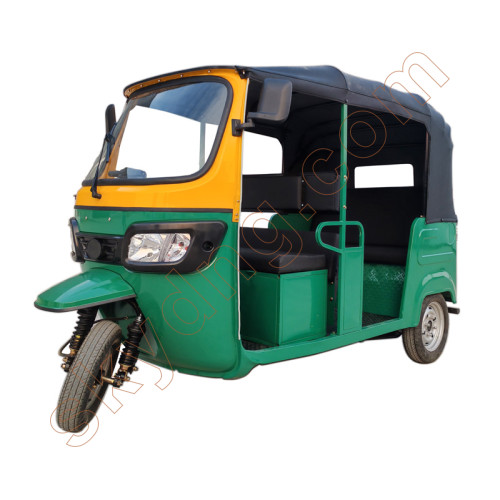

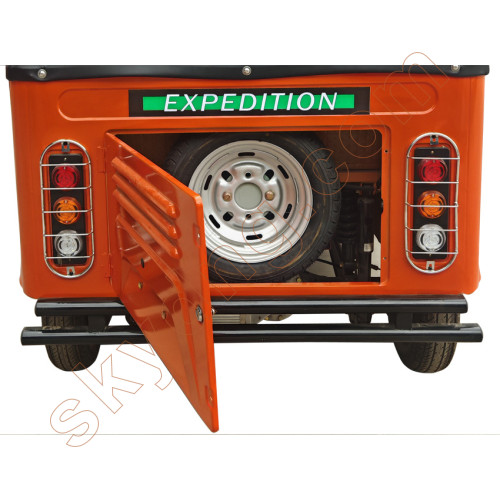

Electric E-Rickshaw Electric Passenger Tricycle
- Product Code: L-GN66
Tags: electric e-rickshaw electric passenger tricycle, l-gn66, electric vehicle parts, tuk tuk electric tricycle
| Model No.: | L-GN66 |
| Overall size： | 2850*1250*1800mm |
| Passenger Capacity: | 1 Driver+ 6 Passengers |
| Dynamical System / Motor: | 72V 3000W AC motor (options) |
| Controller: | Special 72 V 3000W AC comtroller |
| Rear Axle: | Integrated rear axle 220 Hydraulic drum brake |
| Front suspension | Front :Swing arm suspension fork |
| Rear suspension | Independent suspension |
| Brake System: | Front:180 hydraulic drum brake rear: 220 hydraulic drum brake |
| Brake System: | Foot brake/mechanical parking brake |
| Battery: | 72v/120ah Lithium battery (optional) |
| Wheel Base | 2170mm |
| Wheel Track | 1095mm |
| Ground Clearance | 180mm |
| Climbing Ability | 25 degree |
| Load Capacity: | 600-800kg |
| Max Speed: | 55 km/h |
| Endurance Mileage | 130 km Depends on the battery |
| Charging Time： | 8 Hours |
| Colors and logo | Grey,Blue,Yellow,Red or Customized color / accept customized logo |
| Tires: | Front 125-65-12, rear:125-65-12 Iron wheel |
| Other configuration | Mechanical hand brake,Bluetooth radio,USB Charging port |
| Other optional configuration | Spare tire,Passenger door, |
| Net Weight: | 360 kg without battery |
| 40ft Container QTY: | 27sets/40HQ（CKD） |
| 40ft Container QTY: | sets/40HQ（SKD） |
