detail product

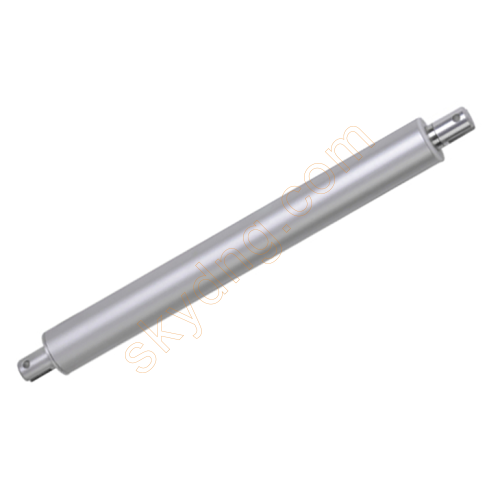

70N-150N Pen Type Linear Actuator
- Product Code: S-LA01-20
Tags: 70n-150n pen type linear actuator, s-la01-20, linear actuator, actuator series
Pen Type Linear Actuator ( forces 70n to 150N )
Specification Features:
Input: 24V/12V DC permanent magnet motor
Outer diameter: 20mm
Max.Load force: 150 N in push, 150 N in pull
Limited switch: Built-in
Duty cycle: Max 10% or 2 minutes continues works, then 18 minutes not work
Noise: less than 50dB
Protection class: IP65
Ambient temperature: -20 o to +66 o
Body Materials: Aluminium alloy for outer and inner tube, corrosion resistant
Certificate: CE
Optional function: Hall sensor; Reed switch; only push force; Without Relay system
Stroke: 10mm to 400mm, customize as demands
Main Parameters:
| Volts (V) | Max. push force (N) | Max. pull force (N) | Non-Load Speed (mm/s) | Full load speed (mm/s) | Current of full load (A) | |
| 24 | 150 | 150 | 4 | 3 | 0.25 | |
| 24 | 100 | 100 | 10 | 6 | 0.18 | |
| 12 | 120 | 120 | 4 | 3 | 0.4 | |
| 12 | 70 | 70 | 10 | 5 | 0.35 |
Rule of Installation:
Lmax=2*S+140mm
Lmin= S+140mm
The drawing of the item:
