detail product

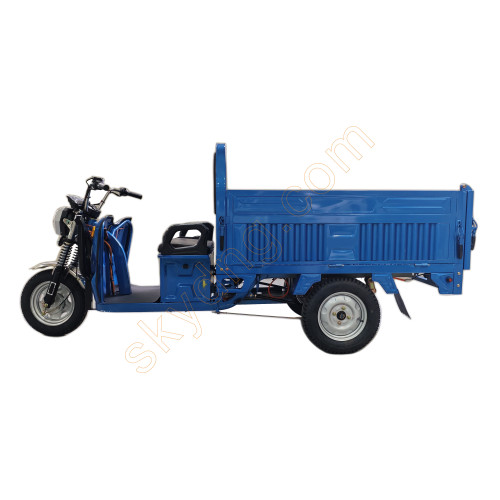

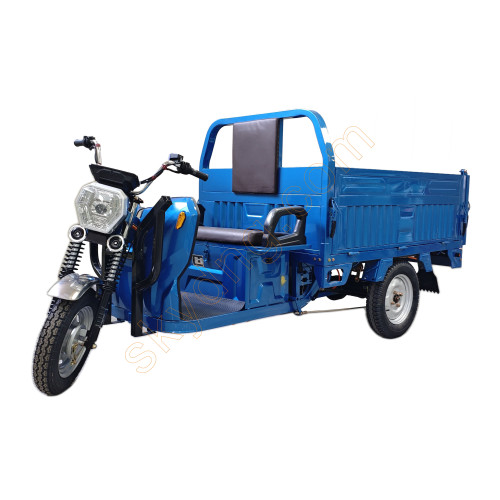

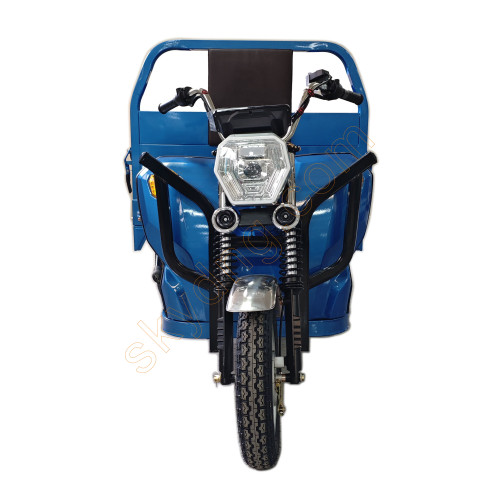

Electric cargo Tricycle with Dump Function
- Product Code: L-GN73
This product has a minimum quantity of 42
| Model No.: | L-GN73 |
| Overall size： | 3060*1200*1350mm |
| Cargo size: | 1600*1100mm |
| Dynamical System / Motor: | 1200W PMSM Motor or options 1500W |
| Controller: | 30Tube or options |
| Front Shock Absorber: | Φ37 external spring hydraulic shock absorber |
| Rear Shock Absorber: | Reinforced steel plate spring |
| Rear Axle: | Integrated oil brake rear axle with 160 brake drum |
| Brake Mode(F/R) | F:130 drum brake R:160 drum brake |
| Battery: | Lead acid (optional): |
| Max Speed: | 40km/h |
| Range: | Depends on the battery: km |
| Ground Clearance: | 140mm |
| Charging Time： | 8 Hours |
| Meter | LCD Meter |
| Optional colors: | Red, Blue, Navy, Yellow Customization is accepted |
| Tires: | Front 375-12, rear:450-12 iron wheels |
| Load Capacity: | 600 kg |
| Weight: | 270 kg |
| 40ft Container QTY: | 42 sets/40HQ（CKD）（） |
| 40ft Container QTY: | sets/40HQ（SKD） |
