-500x500_0.jpg "Electric Three Wheel Tricycle")
detail product

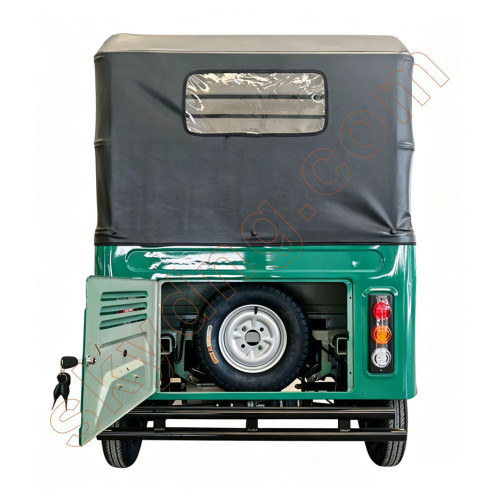

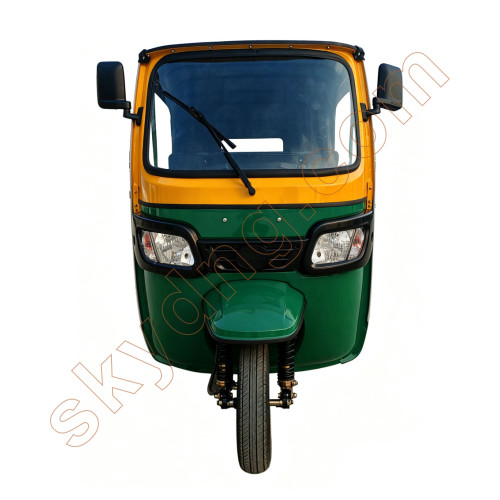

Electric Three Wheel Tricycle
- Product Code: L-GN58
Tags: electric three wheel tricycle, l-gn58, electric vehicle parts, tuk tuk electric tricycle
| Model No.: | L-GN58 |
| Overall size： | 2950*1250*1790mm |
| Passenger Capacity: | 1 Driver+ 3 Passengers (max 4-5 peoples) |
| Dynamical System / Motor: | 3000W AC motor (options) |
| Controller: | Special 3000W AC |

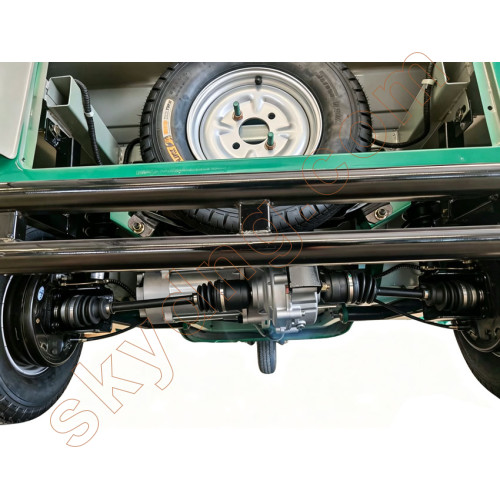

| Rear Axle: | 220 Oil-drum brake integrated rear axle |
| Shock absorber system: | Front :Swing arm suspension fork Rear: Independent suspension |
| Brake System: | Front:180 oil-drum brake rear: 220 oil-drum brake |
| Battery: | Lithium battery (optional) 72v/150ah |
| WheelBase | 2000mm |
| Axle Width | 1100mm |
| Ground Clearance | 300mm |
| Climbing Ability | 25 degree |
| Load Capacity: | 1000kg |
| Max Speed: | 40-60 km/h |
| Endurance Mileage | 80-150km Depends on the battery |
| Charging Time： | 8 Hours |
| Colors and logo | Grey,Blue,Yellow,Red or Customized color / accept customized logo |
| Tires: | Front 125-65-12, rear:125-65-12 |
| Net Weight: | 295 kg without battery |
| 40ft Container QTY: | sets/40HQ（CKD） |
| 40ft Container QTY: | 27sets/40HQ（SKD） |
