detail product

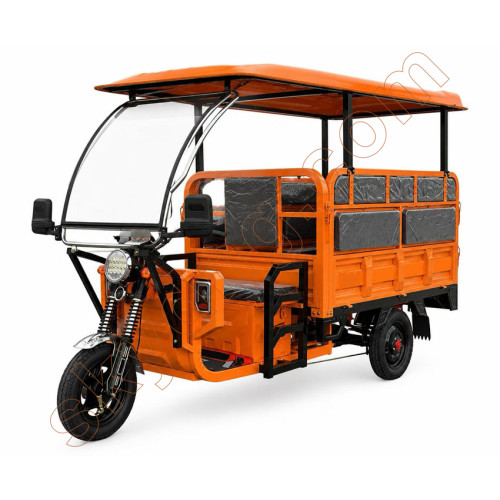

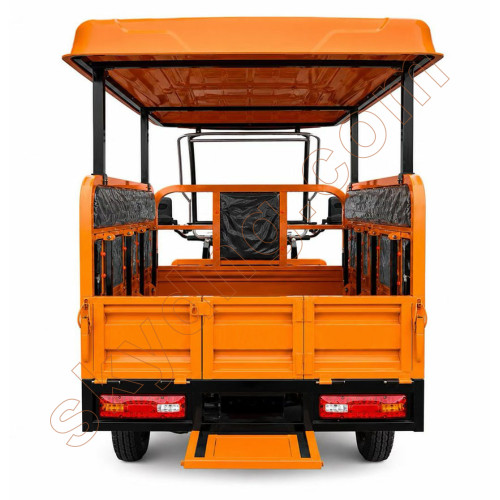

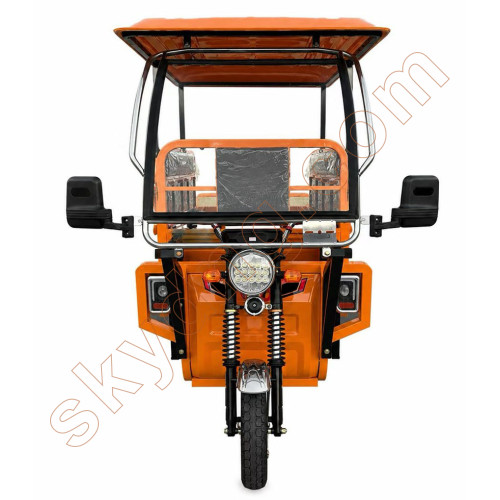

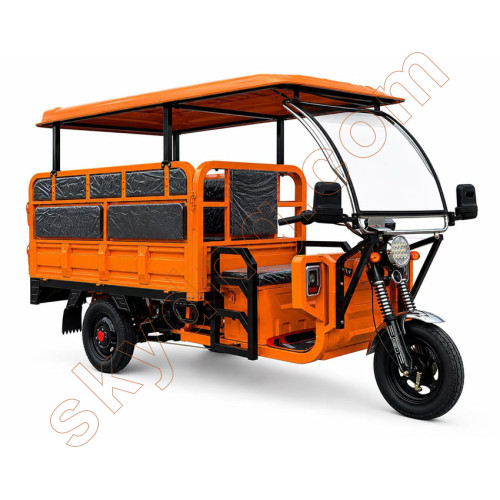

Passenger and Cargo Electric Tricycle
- Product Code: S-LXC15
Tags: passenger and cargo electric tricycle, s-lxc15, cargo electric tricycle, passenger electric vehicle
| Model No.: | S-LXC15 |
| Overall size： | 3120*1190*1700mm or 3320*1190*1700 |
| Carriage Dimensions: | 1600*1100 or 1800*1100 |
| Passenger Capacity: | 1 Driver+ 6-8 Passengers |
| Dynamical System / Motor: | 1500 W or options |
| Controller: | 24 tube controller or options |
| Rear Axle: | Integral rear axle |
| Shock absorber system: | F:Φ43 out spring shock absorber R:Reinforced steel plate spring |
| Brake System: | F/R: drum brake |
| Battery: | 72V58AH Lead-acid battery or options |
| WheelBase | 2240mm |
| Axle Width | 1050mm |
| Ground Clearance | 180 mm |
| Climbing Ability | 30 degree |
| Load Capacity: | 600kg |
| Max Speed: | 35 km/h |
| Endurance Mileage | Depend on the battery |
| Charging Time： | 8 Hours |
| Colors and logo | Grey,Blue,Yellow,Red or Customized color / accept customized logo |
| Tires: | Front:400-12, Rear:450-12 |
| Net Weight: | 295 kg without battery () |
| 40ft Container QTY: | 35 sets/40HQ（CKD） |
| 40ft Container QTY: | sets/40HQ（SKD） |
